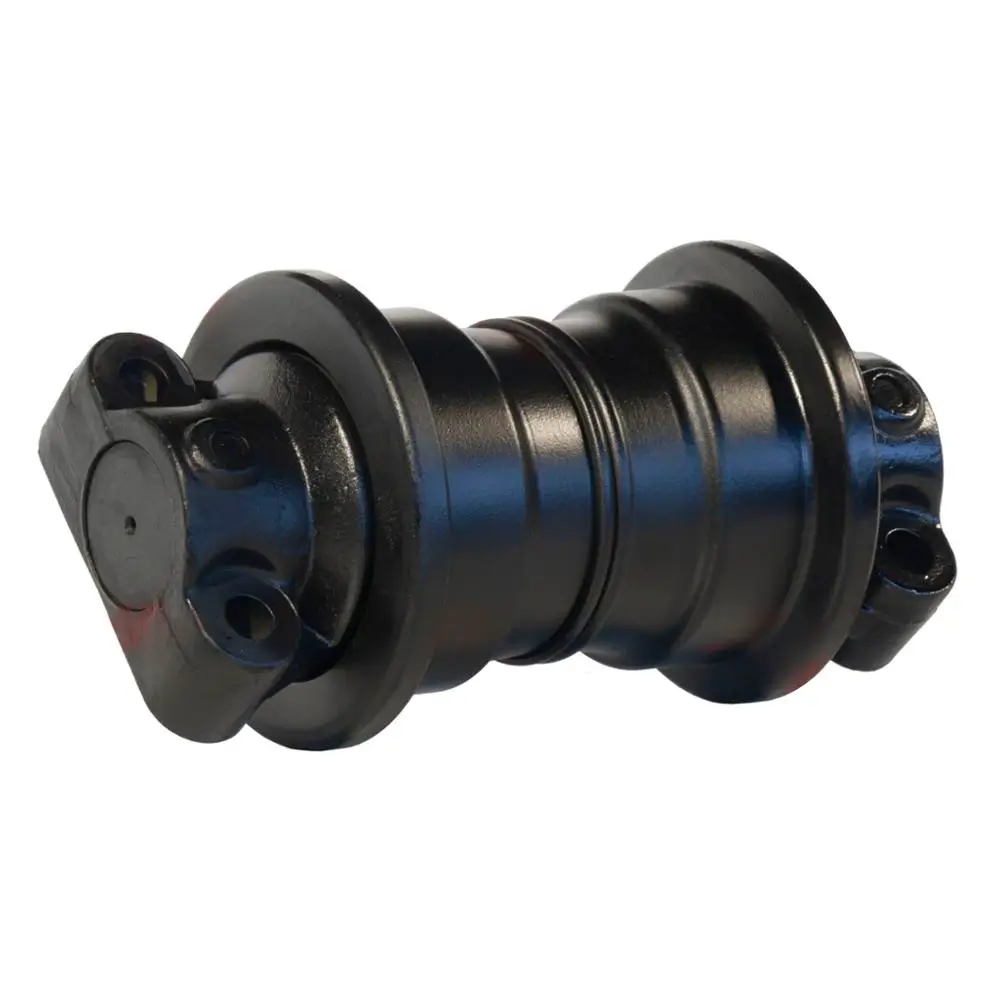

Track roller TR194KB021 for KOBELCO SK220 MARK IV (S/N: BTW LLU 1201-1800)
77250956, C0001788, A1622000M00, 24100J11696F1, 24100J11696F2, 24100J11696F3, 24100J12446F1, UF194B0E
50 kg
| Suitable for | KOBELCO |
| Model | SK220 MARK IV (S/N: BTW LLU 1201-1800) |
Product information
Track roller TR194KB021 for KOBELCO SK220 MARK IV (S/N: BTW LLU 1201-1800) - This track roller is a single flanged roller: it is characterised by 2 outer flanges. To fasten the track roller to your equipment, 4 bolts need to be vertically inserted in the collars. To fit this bottom roller on the undercarriage of a KOBELCO SK220 MARK IV (S/N: BTW LLU 1201-1800) use 4 bolts 10.9 - M18 x 80.
KOBELCO
BE69149
Compatible equipments
Note: only a few examples are listed in the table. The spare part fits many more equipments than shown there. To find out whether the spare part fits your equipment, please enter the type number in the following search field; if the spare part fits, your equipment will be shown afterwards.
| Brand | Model | Model number |
Brand Model |
Model number Fits? | Fits? |
|---|---|---|---|---|---|
| KOBELCO | SK220 MARK IV (S/N: BTW LLU 1201-1800) | SK220 MARK IV (S/N: BTW LLU 1201-1800) | KOBELCO SK220 MARK IV (S/N: BTW LLU 1201-1800) | Fits | Fits |
Identical spare parts
For various reasons, spare parts may be replaced over time by other matching components. For this reason, the spare part you need may also have one of the designations included in the following list.
Example: a track roller 00142370 (old designation) is replaced by track roller 00144978 (new designation). This in turn may be replaced by another roller with a different number. All fit equally.
| Distributor / brand | Original number / version / imprint |
|---|---|
| CNH | 77250956 |
| COT | C0001788 |
| ITM | A1622000M00 |
| KOBELCO | 24100J11696F1 |
| KOBELCO | 24100J11696F2 |
| KOBELCO | 24100J11696F3 |
| KOBELCO | 24100J12446F1 |
| USCO | UF194B0E |
